COMPONENTS AND FEATURES:

1. Mixing Vessel:

   • The primary vessel for holding materials is often equipped with a bottom homogenizer. This vessel may have a conical or dished bottom to facilitate effective mixing and draining.

2. Bottom Homogenizer:

   • A homogenizer is located at the bottom of the mixing vessel. This homogenizer, often a rotor-stator system, generates high shear forces for efficient dispersion and particle size reduction.

3. Inline Emulsifier:

   • An inline emulsification system usually consists of a high-shear mixer or emulsifier positioned along the processing pipeline. This component creates stable emulsions by reducing droplet size and promoting thorough mixing of immiscible liquids.

4. Agitation Systems:

   • Besides the bottom homogenizer and inline emulsifier, the system may include additional agitators or impellers on the sides to promote overall mixing and prevent sedimentation.

5. Variable Speed Control:

   • Adjustable speed settings for the homogenizer, inline emulsifier, and other agitators to cater to different viscosities and material characteristics.

6. Material Handling Systems:

   • Systems for the controlled addition of raw materials into the mixing vessel may involve pumps, metering devices, and automated feeding systems.

7. Instrumentation and Control Systems:

   • Sophisticated control systems monitor and control parameters such as temperature, pressure, and mixing speed, ensuring precision in the processing.

8. Heat Transfer Equipment:

   • Heat exchangers or jacketed vessels to control the temperature of the process when necessary.

9. Cleaning-in-Place (CIP) Systems:

   • Automated systems for cleaning the equipment, ensuring hygiene, and preventing cross-contamination between batches.

10. Material Compatibility:

    • The use of construction materials that are compatible with the processed substances, often involving stainless steel or other corrosion-resistant alloys.

11. Safety Systems:

• • Emergency shutdown systems, pressure relief valves, and protective measures to ensure operator safety.

APPLICATIONS:

1. Pharmaceuticals:

• Used for dissolving and dispersing active pharmaceutical ingredients (APIs) and creating stable emulsions for drug formulations.

2. Chemicals:

• Applied in the chemical industry for processes requiring efficient dissolution, dispersion, and emulsification of raw materials.

3. Cosmetics and Personal Care Products:

• Utilized in the production of creams, lotions, and cosmetic formulations where uniform dispersion and emulsification are crucial.

4. Food and Beverage:

• In the food and beverage industry, it can be used for the dissolution of ingredients, dispersion of flavors, and creation of stable emulsions in products such as sauces, dressings, and beverages.

5. Adhesives and Sealants:

• Employed in the manufacturing of adhesives and sealants, ensuring the thorough mixing and dispersion of components.

6. Polymerization Processes:

• Used in polymerization processes where the efficient dispersion of monomers and the creation of stable emulsions are necessary for the production of polymers.

7. Paints and Coatings:

• Applied in the production of paints and coatings, ensuring the proper dispersion of pigments and the creation of stable emulsions.

8. Bioprocessing:

• Employed in bioprocessing for the dispersion of cells and nutrients, as well as the creation of stable emulsions for specific applications.

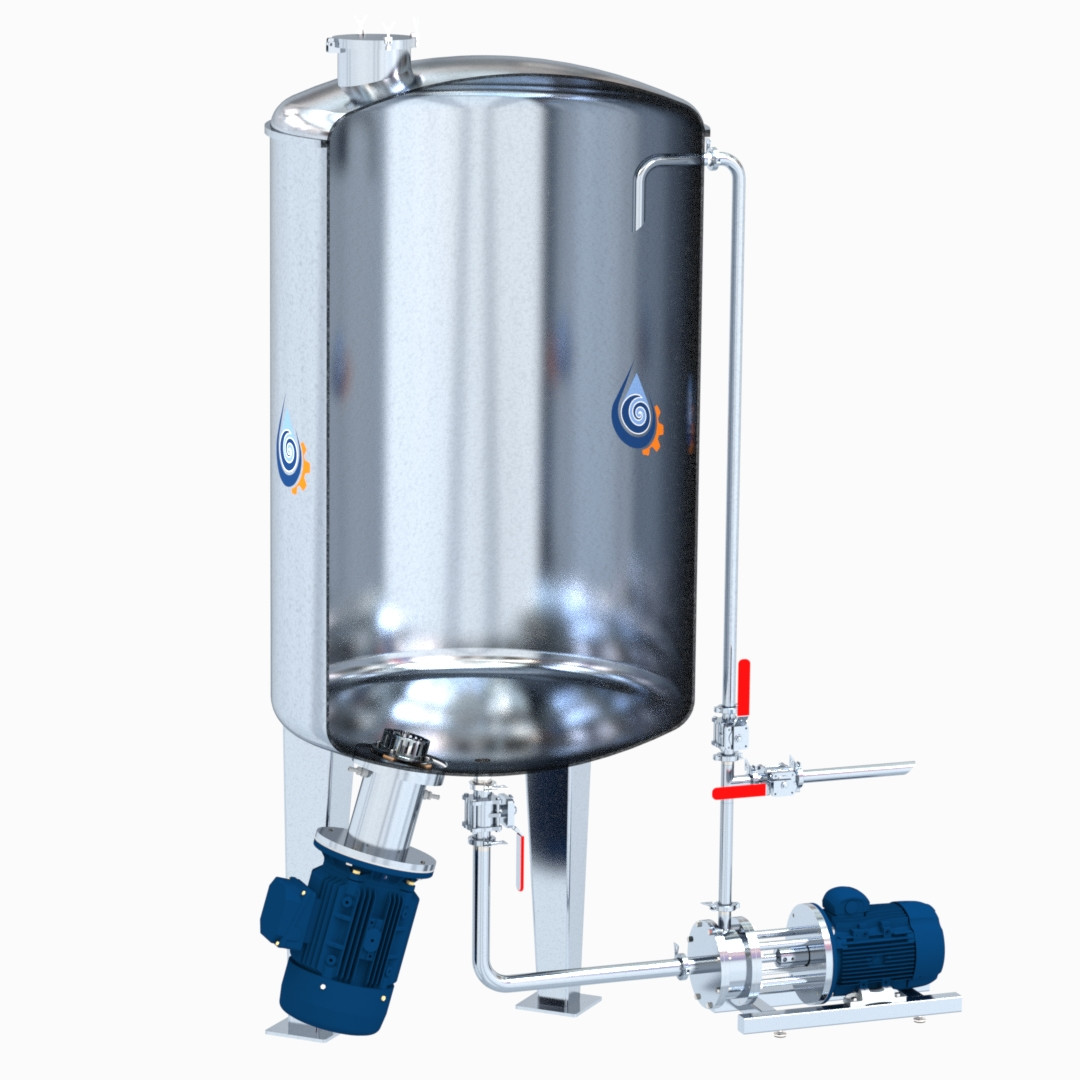

The combination of a bottom homogenizer and inline emulsifier in a disintegrated dissolver system enhances the processing capabilities, allowing for precise control over the mixing and dispersion processes. The specific design and features may vary based on the intended application and industry standards.
